威联通网络存储 TVS-EC1680U-SAS-RP R2

支援 16 顆 12Gbps SAS

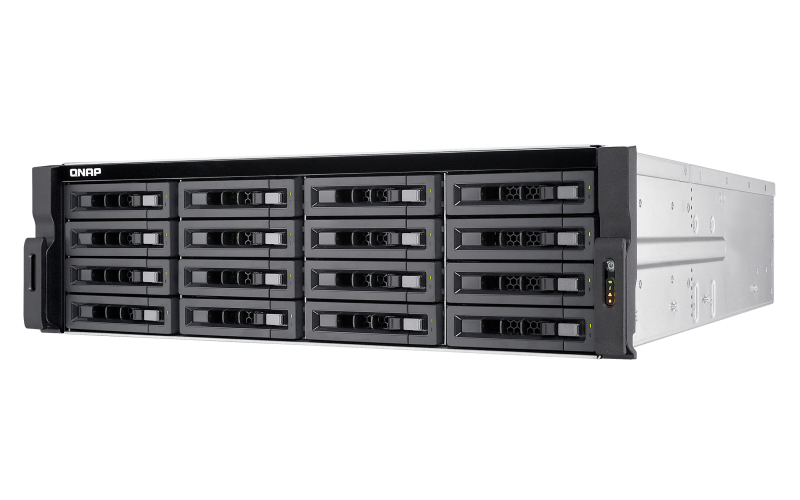

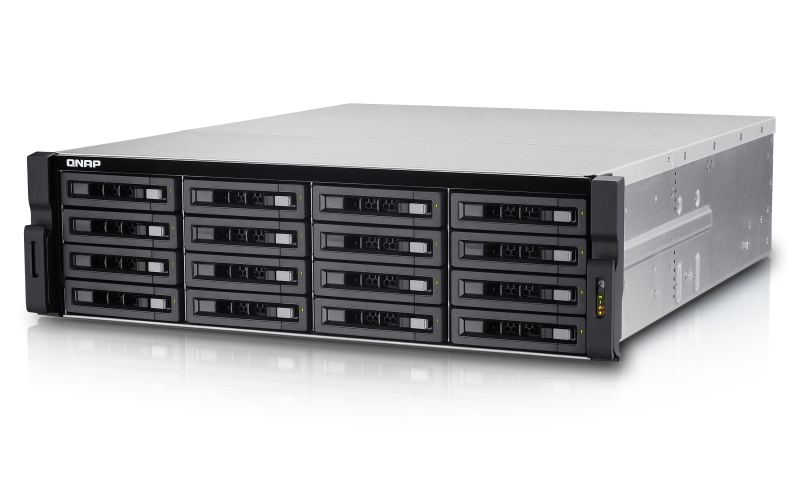

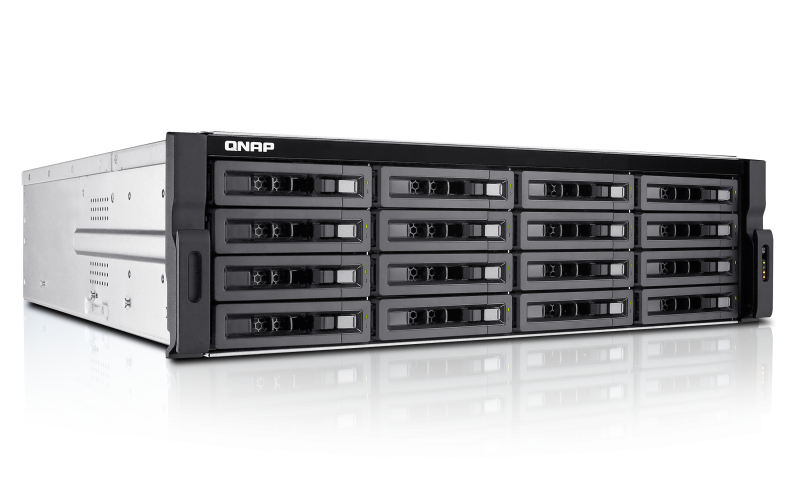

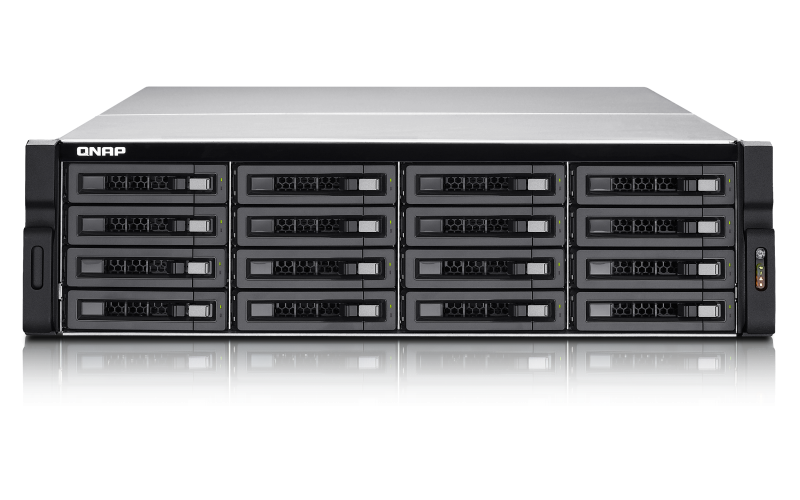

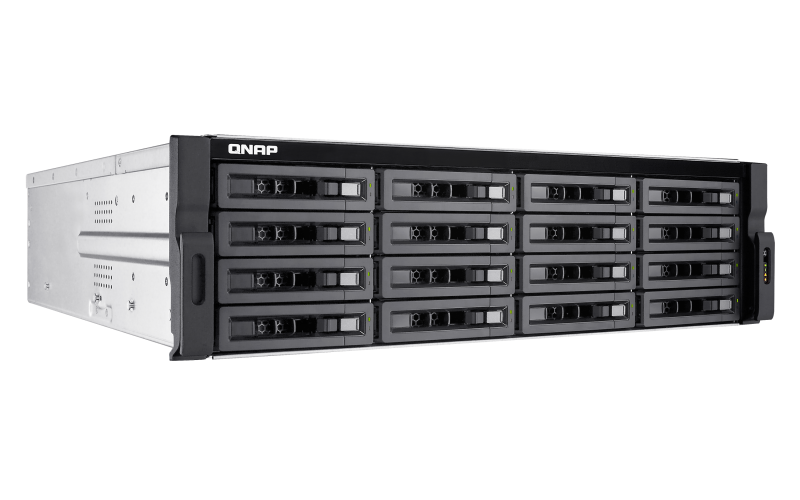

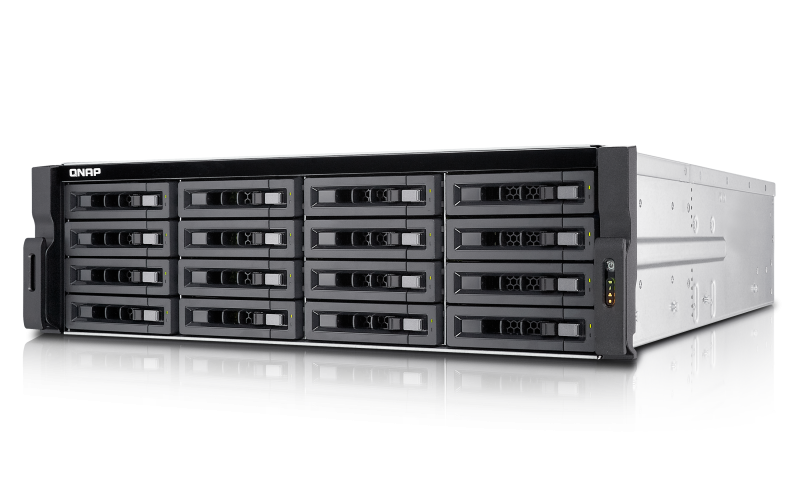

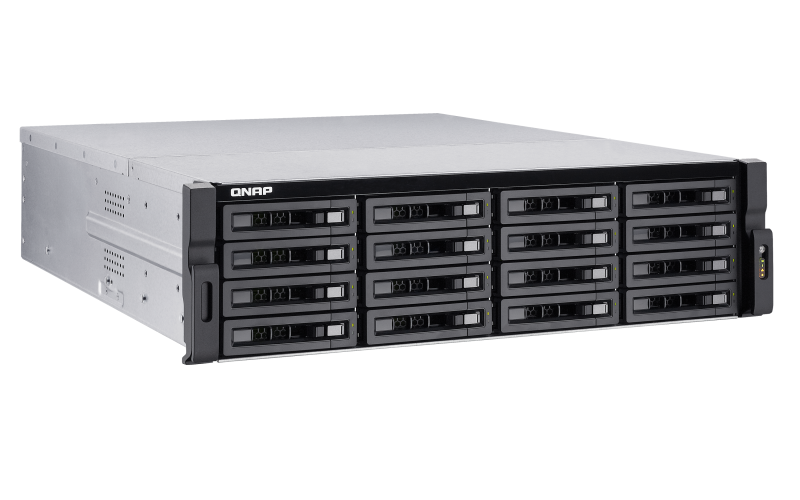

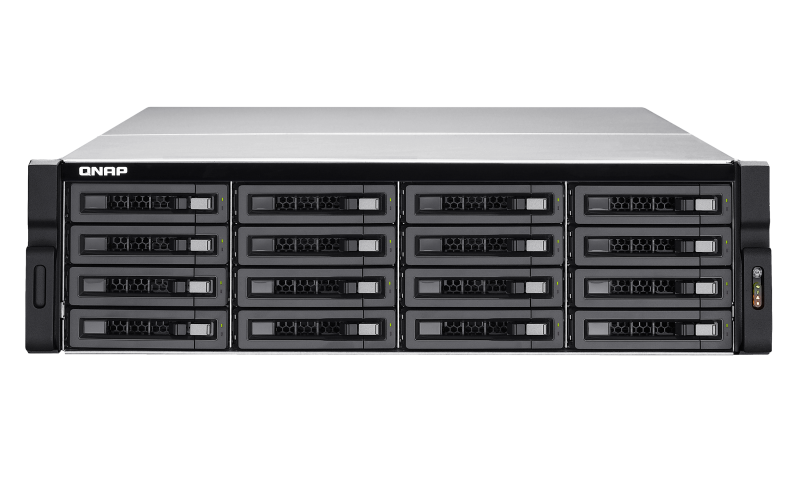

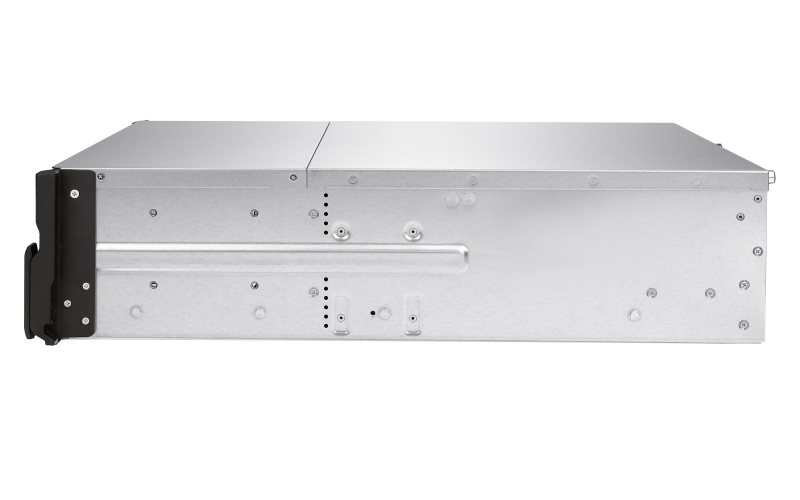

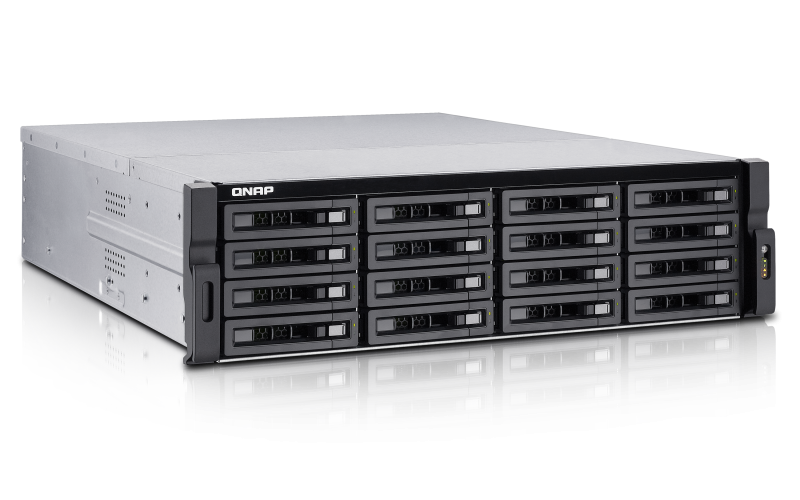

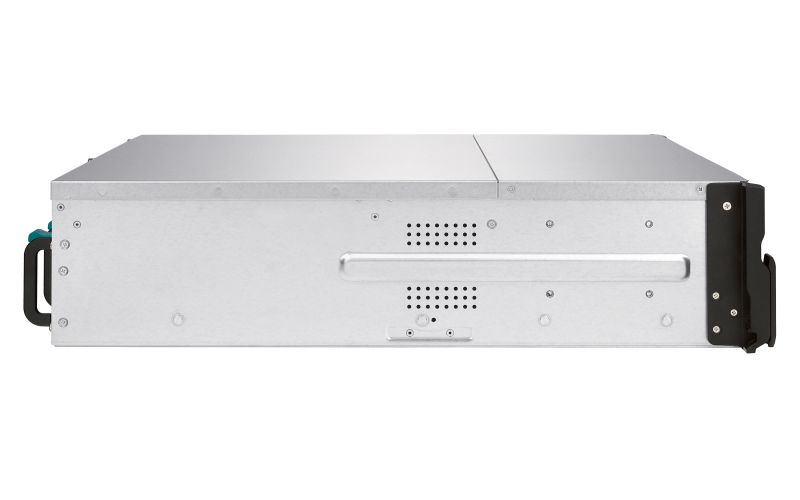

TVS-EC1680U-SAS-RP R2

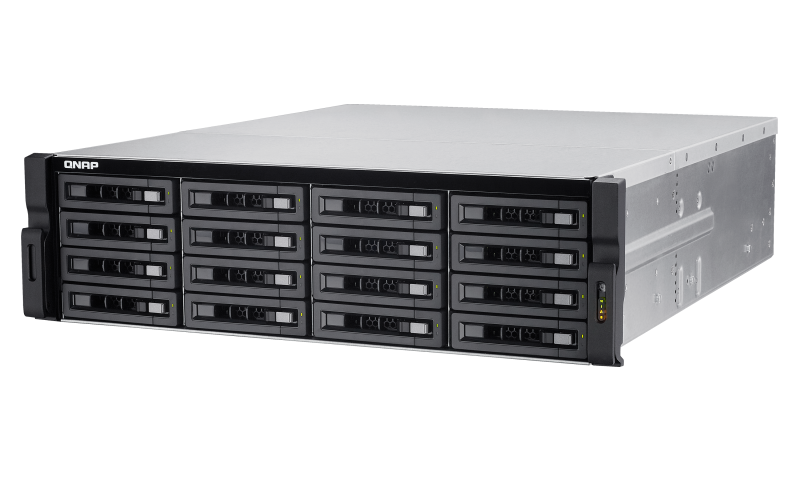

內建雙 10GbE埠,支援 16 顆 12Gbps SAS 硬碟的高效能 NAS / iSCSI / IP-SAN 統一儲存設備

QNAP TVS-EC1680U-SAS-RP R2 是世界第一台支援自動分層儲存 (Auto Tiering) 的 NAS 解決方案,讓資料可在高效能 SSD、12Gbps SAS 硬碟與大容量 SATA 硬碟間靈活移動,持續幫助儲存配置最佳化。TVS-EC1680U-SAS-RP R2 搭載 Intel® Xeon® E3 處理器,具備卓越效能,並支援跨平台檔案分享、全方位備份方案、iSCSI 與虛擬化應用,及更多實用的企業功能。TVS-EC1680U-SAS-RP R2 使用功能強大的 QTS 作業系統,提供企業組織高可靠、可擴充、不同凡響的分層分區 NAS 儲存解決方案。


● 內建 10GbE 高速網路傳輸,適合高畫質影音編輯及分享

● 展現 3,800+ MB/s 吞吐量及 268,000+ IOPS 的極致效能

● Qtier 技術啟動自動分層儲存,讓儲存空間使用發揮最大效益

● 內建 256GB mSATA 快取模組,利於亟需高度 IOPS 效能的應用

● 彈性儲存空間擴充設計,總儲存空間至最大 144 顆硬碟容量

● 支援虛擬化應用、集中化資料儲存、備份與分享,及災難復原

● 向下相容 6Gbps SAS/SATA 硬碟

● 5 年保固 – 包含全球保固服務

Qtier 技術啟動自動分層儲存 (Auto Tiering)

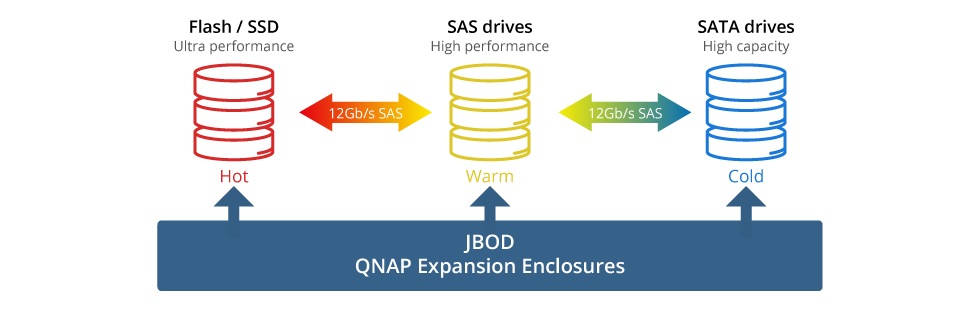

QNAP 的 Qtier 技術賦予 TVS-EC1680U-SAS-RP R2 自動分層儲存的服務,幫助儲存空間最佳配置不間斷。有了自動分層儲存功能,TVS-EC1680U-SAS-RP R2 可辨別資料存取頻率,自動將最常被存取的資料移動到效能較高的磁碟階層,而將較不常被存取的資料移動到成本低、大容量的磁碟階層,提供效率最佳的資料儲存分享中心。企業組織可省下投資所費不貲的 Flash 儲存技術,使用支援自動分層儲存的 TVS-EC1680U-SAS-RP R2 來享有效能與成本兼顧的儲存服務。


12Gbps DataBolt™ 有效提升效能

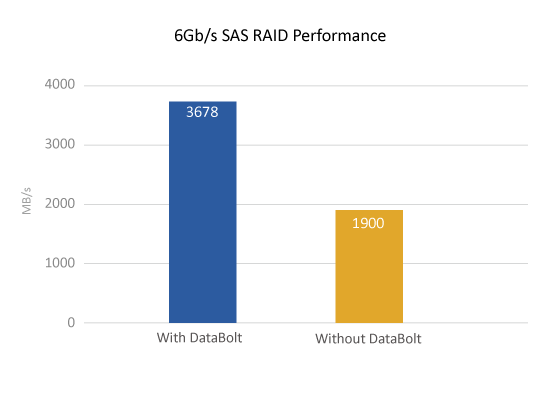

TVS-EC1680U-SAS-RP R2 採用 DataBolt 頻寬優化技術,可自動提升現有的 3Gbps 和 6Gbps SAS 硬碟的頻寬基礎來實現 12Gbps 的速度,提供大頻寬的資料傳遞,有效提升需要大量頻寬應用的運作效能。

卓越效能

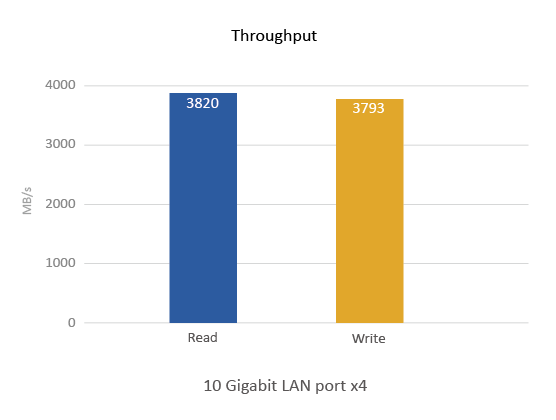

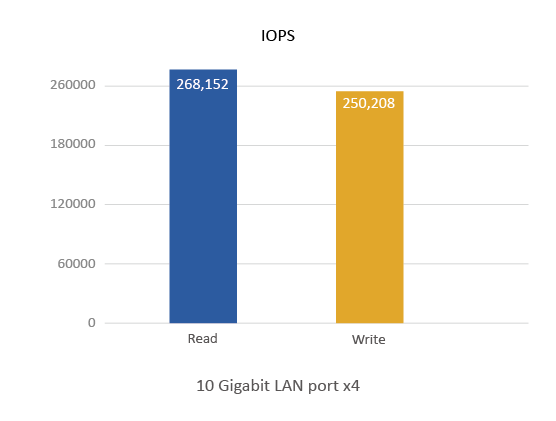

TVS-EC1680U-SAS-RP R2 支援 12Gbps SAS 硬碟,可提供高達 3,820MB/s 吞吐量及 268,152 IOPS 的優異效能*。TVS-EC1680U-SAS-RP R2 搭載 Intel® Xeon® E3 v3 四核心處理器以及 16GB DDR3 或 8GB DDR3 ECC記憶體,能夠順暢運作需要大量系統資源的任務及應用,也可同時進行多項資料處理任務。



測試於 QNAP 實驗室。數據會因實際環境而有所不同。

測試環境:
4 Client PC configurations: Intel (R) Core (TM) i7-4790 CPU @ 3.60GHz CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter sequential read and write.

NAS Configuration: Plextor PX-256MPro ; F/W:1.07, SSDs with RAID 5 configuration, QNAP LAN-10G2T-X550 dual-port 10GBase-T network adapter*2

SSD 快取技術

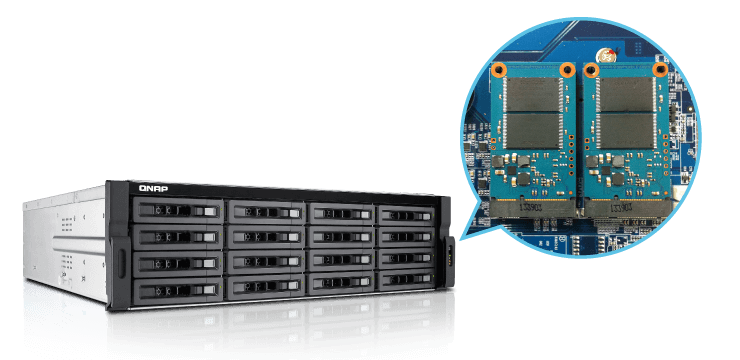

TVS-EC1680U-SAS-RP R2 內建 2 個 128GB mSATA 快取模組,並支援 SSD 快取,且不限 SSD 數量。透過安裝高速 SSD,可有效加速磁碟存取的 IOPS 效能。此功能對於亟需高度 IOPS 的資料庫和虛擬化等應用,皆能大幅改善整體運作效能。內建快取埠的設計不會占用硬碟槽,讓系統內部空間運用更有效率。


抽取式主板設計便於管理

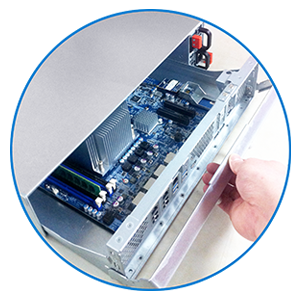

TVS-EC1680U-SAS-RP R2 擁有可抽取的主板設計,讓 IT 管理者可以更方便地安裝或更換記憶體、內建快取模組及 40GbE 擴充卡等配件,毋須從機架上將沉重的 TVS-EC1680U-SAS-RP R2 整個搬下。可輕鬆抽換主機板的設計,對於擁有多個機架設備的資料中心來說,TVS-EC1680U-SAS-RP R2 的管理特別方便。

注意:主板並非熱插拔設計,抽取前,必需先行關機。

打造 40GbE 就緒的 NAS 儲存方案

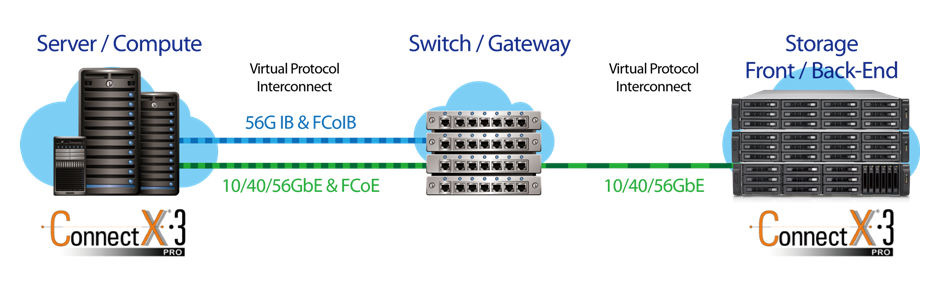

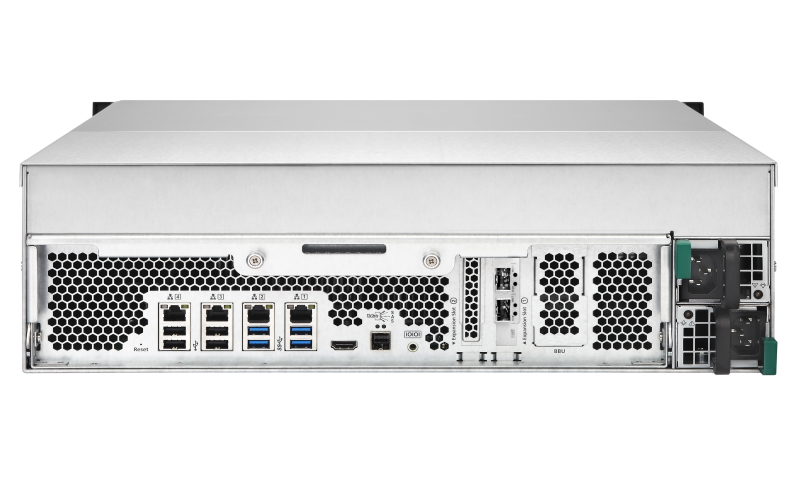

TVS-EC1680U-SAS-RP R2 內建的 4 個 Gigabit 網路埠及 2 個 SFP+ 介面 10GbE 網路埠,提供 10GbE 高速傳輸速度。倘若 10GbE 網路無法充分滿足某些應用或 IT 任務的需求,TVS-EC1680U-SAS-RP R2 還支援 Mellanox® ConnectX-3 Pro 10/40/56 GbE 網路配接卡,提供高性能、靈活且具成本效益的儲存互聯解決方案。利用高頻寬傳輸,可顯著提升 I/O 的連網能力,輕鬆處理高資料存取附載以及虛擬化加速等應用。企業組織可仰賴 TVS-EC1680U-SAS-RP R2 可擴充 40GbE 所帶來的高速網路性能與部署彈性,增強關鍵 IT 任務的工作效能。


TVS-EC1680U-SAS-RP-8GE-R2
下载产品规格书
TVS-EC1680U-SAS-RP-16G-R2下载产品规格书
處理器Intel® Xeon® E3-1245 v3 四核心 3.4 GHz 處理器、E3-1246 v3 四核心 3.5 GHz 處理器或相容的 E3-1200 v3 家族處理器
處理器架構64 位元 x86
浮點運算支持
加密引擎 (AES-NI)
系統記憶體8 GB UDIMM DDR3 ECC (2 x 4 GB)
最大記憶體32 GB (4 x 8 GB)
記憶體插槽4 個 DDR3 Long-DIMM
當記憶體擴充至 28GB 以上時,需移除原本的 4GB 記憶體模組。
記憶體模組的安裝及 NAS 機型的相容性說明請參考 QNAP RAM 模組安裝手冊
快閃記憶體512 MB (DOM 適用於雙 OS)

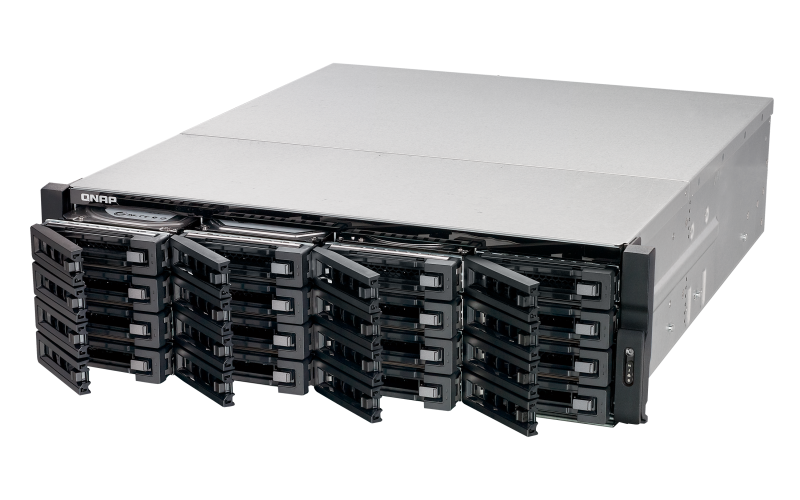

硬碟插槽數16 個 3.5 吋 SAS 12Gb/s、6Gb/s
標準系統出貨不包含硬碟。
如需硬碟相容性列表,請造訪 https://www.qnap.com/compatibility/
支援硬碟類型3.5 吋 SAS/SATA 硬碟
2.5 吋 SAS/SATA 硬碟
2.5 吋 SAS/SATA 固態硬碟
熱插拔支援支持
mSATA 插槽2 個
(mSATA 快閃記憶體模組為隨附配備)
如需選購 mSATA 快閃記憶體,請造訪 http://shop.qnap.com/
固態硬碟快取加速支援支持
Gigabit 乙太網路埠 (RJ45)4
相容網路介面卡列表請造訪
10 Gigabit 乙太網路埠2 個 10GbE SFP+
巨幀封包支持
PCIe 擴充槽2
插槽 1:PCIe Gen 3 x8
插槽 2:PCIe Gen 3 x4
PCIe Gen3 (x8) 插槽已安插 10GbE 網路擴充卡
USB 2.0 埠4
USB 3.2 Gen 1 port4
HDMI 輸出1
機型3U 機架式
LED 指示燈硬碟 1-16、狀態、10 GbE、網路、儲存空間擴充埠狀態
按鈕電源、系統重置
尺寸 (高x寬x深)130 × 442.5 × 530.5 mm
重量 (淨重)18.3 kg
重量 (毛重)24.18 kg
工作溫度0 - 40 °C (32°F - 104°F)
相對濕度5~95% RH (不凝結),濕球:27˚C (80.6˚F)
電源供應器備援 / 熱抽換 ATX 電源供應器,輸入:
50-60 Hz
100-127V~/ 8.5A
200-240V/ 4.2A
輸出:650W
耗電量:硬碟休眠模式136.57 W
耗電量:運作模式,典型值212.51 W
含 16 顆 HITACHI HUS724020ALA640 硬碟
風扇4 個智慧型風扇 (80mm)
噪音值35.5 db(A)
系統警示蜂鳴器
同時連線 (CIFS) 數目上限1500
注意:請僅使用 QNAP 記憶體模組來維持系統的效能與穩定性。若 NAS 裝置有多個記憶體模組,請使用相同規格的 QNAP 模組。
警告:使用不支援的模組可能會降低效能、造成錯誤,或使作業系統無法啟動。
* 噪音值測試環境:
參考標準: ISO 7779 ; 依 Bay 數裝載最多數量硬碟 ; 以 Bystander Position 測量 ; 取機器運行中前方一米處平均數據
威聯通科技得保留隨時修改的權利,恕不另行通知。


Operating SystemQTS (QNAP Turbo NAS System)Disk ManagementQNAP Flexible volumeThin-provisioning with space reclamation supportedOnline Volume ExpansionOnline Storage Pool Expansion (via QNAP RAID expansion enclosure)Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 50, 60RAID Hot Spare and Global Hot SpareOnline RAID Capacity Expansion and Online RAID Level MigrationBad Block Scan and Hard Drive S.M.A.R.T.Bad Block RecoveryRAID RecoveryBitmap Support
Supported ClientsApple Mac OS 10.7 or laterLinux and UNIXMicrosoft Windows 7, 8, and 10Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016Power ManagementWake on LAN*Internal Hard Drive Standby ModeScheduled Power on/offAutomatic Power on after Power RecoveryUSB and Network UPS Support with SNMP Management
Supported BrowsersMicrosoft Internet Explorer 10+Mozilla Firefox 8+Apple Safari 4+Google ChromeAccess Right ManagementBatch Users CreationImport/Export UsersUser Quota ManagementLocal User Access Control for CIFS, AFP, FTP, and WebDAV,Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager
Multilingual SupportChinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, TurkishDomain Authentication IntegrationMicrosoft Active Directory (AD)LDAP ServerLDAP ClientDomain Users Login via CIFS/SMB, AFP, FTP, and File Station
File SystemInternal Hard Drive: EXT4External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+Web AdministrationMulti-window, Multi-tasking based System ManagementMovable Icons and Personalized DesktopSmart Toolbar and Dashboard for Neat Display on System StatusSmart Fan ControlDynamic DNS (DDNS)SNMP (v2 & v3)Resource MonitorNetwork Recycle Bin for File Deletion via CIFS/SMB and AFPAutomatic CleanupFile Type FilterComprehensive Logs (Events & Connection)Syslog ClientFirmware Live UpdateSystem Settings Backup and RestoreRestore to Factory DefaultMobile App Qmanager for Remote Monitoring
NetworkingTCP/IP (IPv4 & IPv6: Dual Stack)Quad Gigabit NICs with Jumbo Frame*FailoverMulti-IP SettingsPort Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB)Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards*Service Binding Based on Network Interfaces*Proxy Client, Proxy ServerDHCP Client, DHCP ServerProtocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSCUPnP & Bonjour DiscoveryUSB Wi-Fi Adapter SupportFile ServerFile Sharing across Windows, Mac, and Linux/UNIXProtocols: CIFS/SMB, AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager), WebDAVWindows ACLAdvanced Folder Permission for CIFS/SMB, AFP, FTPShared Folder Aggregation (CIFS/SMB)
SecurityIP Filter & Policy-based Automatic IP BlockingNetwork Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFPEncrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)CIFS Host Access Control for Shared FoldersAntivirus ProtectionAES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)**AES 256-bit External Drive Encryption*Importable SSL CertificateInstant Alert via E-mail, SMS, Beep, and LCD Panel*File StationSupports ISO Mounting (Up to 256 ISO Files)Creates and Sends Download Links for Sharing Public Files with Expiration Time and Password ProtectionDrag-n-drop Files via Chrome and Firefox BrowsersPhoto, Music, and Video Preview and Playback Empowered by Built-in Transcoding TechnologyFile Compression (ZIP or 7z)Advanced SearchMobile App: Qfile for File Browsing and Management
Powerful All-in-one server
FTP ServerFTP over SSL/TLS (Explicit)Concurrent Connections: Max 256Passive FTP Port Range ControlFTP Bandwidth & Connection ControlSupports FXP & UnicodeSyslog ServerCentralized Log Monitoring and ArchivingImmediate Email AlertsSupports Log Filtering
Backup StationRemote Replication Server (over Rsync)Real-time Remote Replication (RTRR) to another QNAP NAS or FTP ServerWorks as Both RTRR Server & Client with Bandwidth ControlReal-time & Scheduled BackupEncryption, Compression, File Filter, and Transfer Rate LimitationEncrypted Replication between QNAP NAS ServersDesktop Backup by QNAP NetBak Replicator for WindowsApple Time Machine Support with Backup ManagementData Backup to Multiple External Storage DevicesSynchronizes with Cloud Storage: Amazon S3, ElephantDrive, Dropbox, and Google Cloud StorageThird Party Backup Software Support: Veeam Backup & Replication, Acronis TrueImage, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.Print ServerMax No. of Printers: 3Supports Internet Printing ProtocolPrint Job Display and ManagementIP-based and Domain Name-based Privilege ControlSupports Apple Bonjour Printing
iSCSI (IP SAN)iSCSI TargetMulti-LUNs per TargetUp to 256 Targets/LUNs CombinedSupports LUN Mapping & MaskingBlock-based LUNThin-provisioned LUN with Space Reclamation supportedOnline LUN Capacity ExpansionSupports SPC-3 Persistent ReservationSupports MPIO & MC/SiSCSI LUN Backup, One-time Snapshot, and RestoreiSCSI Connection and Management by QNAP Finder (Windows)Virtual Disk Drive (via iSCSI Initiator)Stack Chaining MasterMax No. of Virtual Disk Drives: 8Database ServerBuilt-in MySQL ServerWeb-based Management via phpMyAdmin
Server Virtualization & ClusteringVMware vSphere (ESX/ESXi 4.x, 5.x)VMware VAAI for iSCSI and VAAI for NASvSphere Plug-inCitrix XenServer (6.0)Windows Server 2012 Hyper-VSupports Microsoft ODXQNAP SMI-S provider for Microsoft SCVMMWindows Server 2012 Failover ClusteringRADIUS ServerCentralized Account Management and Authentication for Network AccessSupports 802.1x Security AuthenticationTFTP Server with PXE Booting (Read-only)
Virtualization StationSupport up to 8 Virtual Machine (32GB RAM is required) creating to run an operating system such as Windows, Linux, Unix.VM import from Virtual AppliancesVM export into a virtual appliance in OVF / QVM formatVM cloneVM snapshotHTML5 based shared remote consoleVPN ServerSecure Remote Access: PPTP & OpenVPN VPN servicesRemote Access to Other Resources on Local NetworkMax No. of Clients: 300
Storage Plug & Connect via Windows Qfinder Pro by QNAPCreate and Map Shared FoldersCreate and Connect to iSCSI Target/LUNSurveillance StationSupports over 1,400 IP CamerasIncludes 8 Free Camera LicenseUp to 80 Camera Channels via Additional License Purchase*Intelligent Video Analytics (IVA) for Advanced Video SearchVisual Aid by E-mapSurveillance Client for MacMobile App: Vmobile (iOS and Android)
myQNAPcloud ServicePrivate Cloud Storage and SharingFree Host Name Registration (DDNS)Auto Router Configuration (via UPnP)myQNAPcloud Link for Remote Access without Complicated Router SetupmyQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)AntivirusSupports ClamAV (free) and McAfee (optional purchase ) virus scanner.Protection against Viruses, Trojans, and Other ThreatsFree Virus Databases Update on Manual or Scheduled BasisMultiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled ScanningEmail Notification upon Task Completion or Virus DetectionQuarantines or Deletes Infected Files
QsyncSyncs Files among Multiple Devices through the NASOption for Not Removing Files on the NAS during SynchronizationSelective SynchronizationShares Securely with SSLTeam FolderShares Files by Links via E-mailUploads Photos or Videos to Qsync Folder Automatically via QfileRestores Files from Network Recycle BinFile Name Conflict PolicyOption for Filter SettingsPrivilege Control for Qsync UsersSupports Windows & Mac OSAPP CenterAdd New Features by Online Installation of over 90 Official and Community Software
Web ServerHTTP/HTTPS ConnectionsSupports WebDAV ConnectionSupports Virtual Host (Max: 32)Importable SSL CertificateAdd-ons(The actual available software add-ons may vary depending on the NAS platform)

* This feature may vary according to different models.
**  The data encryption functions may not available in accordance with the legislative restrictions of some countries.

Design and specifications are subject to change without notice.


TVS-EC1680U-SAS-RP R2乙太網路線纜 x 4電源線 x 2
十字螺絲 x 64 (適合 3.5 吋硬碟)十字螺絲 x 64 (適合 2.5 吋硬碟)快速安裝手冊
