Upgrade to Wi-Fi NAS or Wi-Fi Windows®/Linux® PC by Adding 802.11ax high-speed wireless connectivity

    qxp-w6-ax200
    QXP-W6-AX200
    购买→

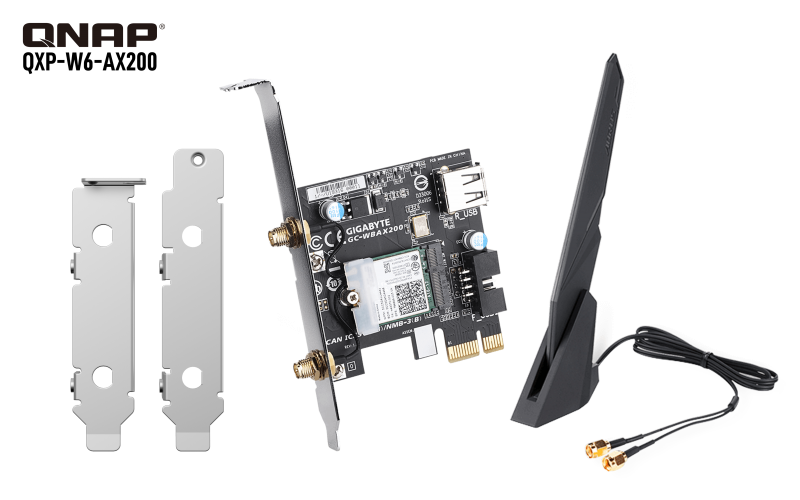

    The QXP-W6-AX200 is a PCIe Gen 2x1 Wi-Fi 6 wireless adapter with an Intel® Wi-Fi 6 AX200 module that supports the IEEE 802.11ax standard (backwards compatible with 802.11a/b/g/n/ac), MIMO 2Tx2R, MU-MIMO TX/RX and Bluetooth 5.0. The QXP-W6-AX200 can be installed in a QNAP NAS, or Windows®/Linux® PC to provide fast Wi-Fi 6 connection speeds. The QXP-W6-AX200 can also be used with Wi-Fi 6 router to deploy Wi-Fi 6 network environment. A full-height bracket is pre-installed on the QXP-W6-AX200 and two low-profile brackets are also included.

    wifi6

    • 1

      The QXP-W6-AX200 supports Wi-Fi 6 802.11ax, provides up to 2400Mbps connection speeds, and is backwards compatible with 802.11acR2/ abgn.

    • 2

      The QXP-W6-AX200 supports MU-MIMO 2Tx2R, providing greater connectivity with multiple clients; OFDMA increases network efficiency and decreases packet delay.

    • 3

      The QXP-W6-AX200 has dual band 2.4GHz/ 5GHz antennae, multiple angle tilt, and a magnetic base for the best signal strength direction and location.

    • 4

      The QXP-W6-AX200 supports BSS coloring that marks shared frequencies with a number for easy differentiation.

    • 5

      Bluetooth® 5.0 provides faster speeds and wider range to easily connect to multiple devices.

      Notes: Bluetooth® 5.0 is only available when installed in a Windows® PC and requires an internal USB connection.

    • 6

      Wi-Fi 6 uses 1024-QAM to provide a signal packed with more data, and enables 25% faster data rates than 256-QAM.

    2.8x Faster Connectivity

    The QXP-W6-AX200 dual band Wi-Fi 6 PCIe card supports 802.11ax 160MHz dual band connectivity, 1024-QAM and up to 2400Mbps connection speed which is 2.8 times faster than Wi-Fi 5(802.11ac).

     Notes:
    1. Wi-Fi speed and connection quality may vary based on network traffic, environmental factors, Internet speed, client device performance, and the number of other Wi-Fi and radio signals in the immediate area.

    Easy Access with a Wireless NAS

    With a QXP-W6-AX200 installed in your NAS, you can free yourself from Ethernet cables and access all your stored files and multimedia over a high-speed wireless connection. A full-height bracket is pre-installed on the QXP-W6-AX200 and two low-profile brackets are also included.

     Notes:
    1. System requirements: 64-bit x86-based NAS (Intel and AMD), or ARM-based NAS, with QTS 4.4.3 (or later) with a PCIe Gen 2x1slot. Check the Compatibility List for a full list of compatible NAS.
    2. Some NAS models must update their BIOS to the following versions. You can download BIOS from the Download Center and learn how to update a BIOS here.
    • TS-251B: Q015AR02
    • TS-653B: QY59AR58
    • TS-251D, TS-253D: Q04WAR08
    • TS-453D, TS-653D: Q04MAR12
    • TS-453DU, TS-453DU-RP, TS-853DU-RP, TS-1253DU-RP: Q05PAR03

    Easily Set Up a NAS Wireless Network Connection

    After installing the QXP-W6-AX200 in your NAS, use Network & Virtual Switch or Qfinder Pro to set up the Wi-Fi connection, guest network environment or captive portal.

     Notes:
    1. Browser Station requires an x86 NAS with at least 4GB RAM.
    2. If the connected Wi-Fi AP blocks the network segment under NAT, the captive portal may not automatically appear.

    Use Network & Virtual Switch
    Use Qfinder Pro
    Use Browser Station to open a captive portal

    Upgrade Your Windows® or Linux® PC with High-speed Wireless Networking!

    The QXP-W6-AX200 is not just for NAS, it can be installed in a Windows® or Linux® PC to provide Wi-Fi 6 connectivity for enabling faster downloading speeds and low-latency connectivity.

     Notes:
    1. The QXP-W6-AX200 supports 64-bit Windows® 10 and Linux® PC. You can download Windows drivers and Linux drivers from the Intel website.

    Dual Band Antenna with Better Wi-Fi Signals

    The QXP-W6-AX200 features a new antenna design that provides better Wi-Fi signals and transmission speeds.

    • Supports dual band 802.11ax 2.4GHz & 5GHz and provides better signal strength compared to traditional antenna designs.

    • The smart antenna function provides superior WI-FI signal transmission.

    • The multiple angle tilt and magnetic base allows you to get the best signal strength direction and location.

    Add Bluetooth 5.0 to Your Windows® PC

    When installed in a Windows® PC, the QXP-W6-AX200 provides Bluetooth® 5.0 connectivity. Please note that this requires connecting the QXP-W6-AX200 to an F_USB connector on your motherboard using the included USB cable.

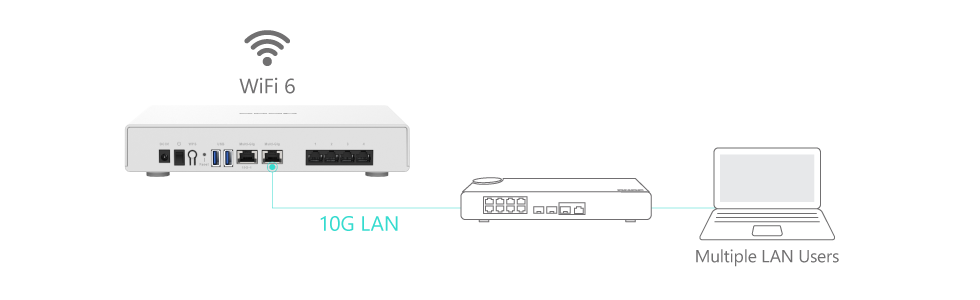

    Use with a Wi-Fi 6 Dual-port 10GbE QHora Router

    The QNAP QHora Wi-Fi 6 dual-port 10GbE router fulfills wireless and wired networking for homes and businesses alike, making it easy to create affordable high-speed networking.

    知道更多：QHora-301W
